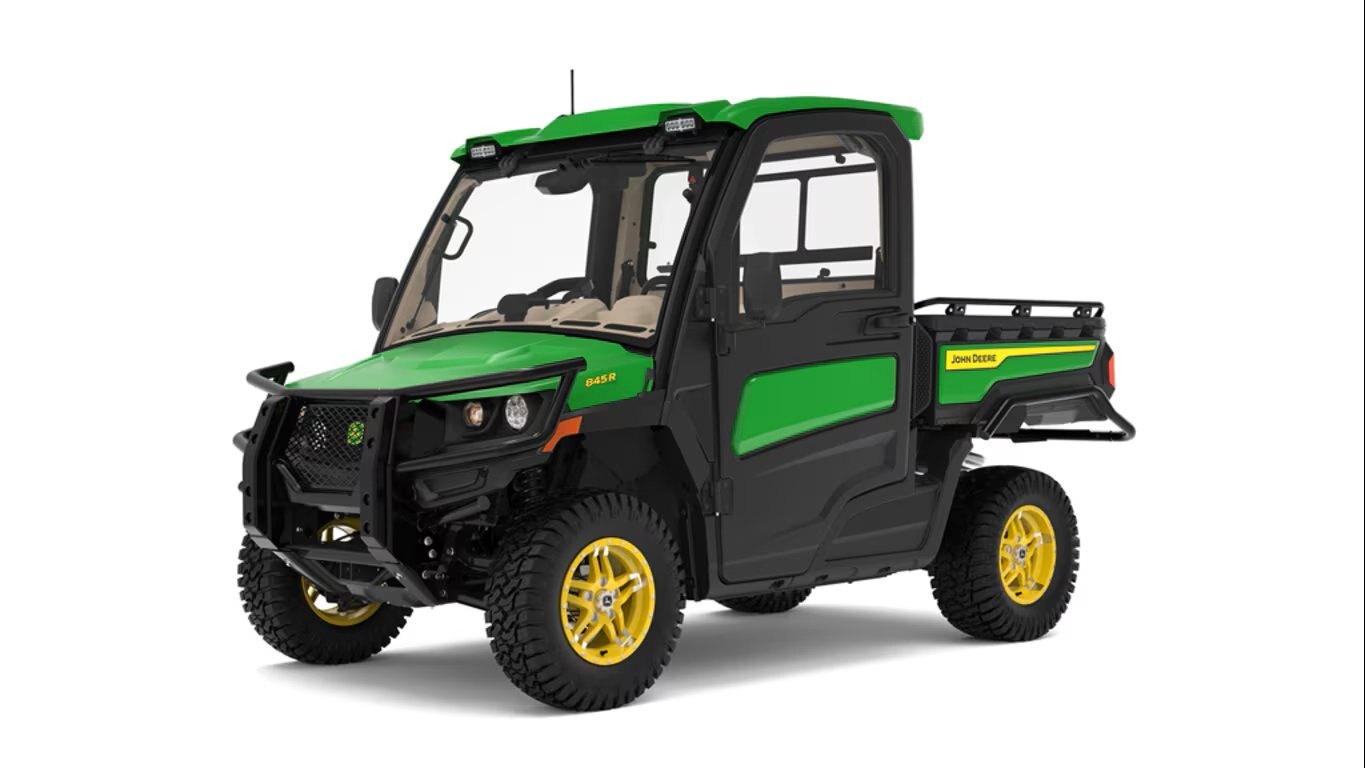

2025 John Deere XUV 845R Signature Edition

Signature Edition Gator™ Utility Vehicles are loaded with exclusive features

The Signature Edition Gator Utility Vehicles leverage technology to deliver a distinctive experience. Features include:

• Factory-installed touchscreen infotainment system
• Ultimate protection package including:
  • Bumper Pro Brush Guard
  • Rear bumper
  • Rear fender guards
  • Floor mats
• Premium comfort and convenience package including:
  • Cargo box power lift
  • Dual-beam light-emitting diode (LED) head lights
  • LED reverse lights and turn signals with clear lens
  • Horn
• Genuine leather 40/60 split three-passenger bench seat
• Rear-facing camera
• Easy-access rear-sliding window
• Leather-wrapped grab handle
• Signature Edition badges
• Front roof-mounted LED driving lights
• Maxxis® Bighorn® 2.0 extreme terrain or Predator Heavy-Duty all-terrain radial tires with alloy wheels
• Green and yellow color
• All existing R-trim cab features including:
  • Integrated heating, ventilation, and air conditioning (HVAC)
  • Stone interior
  • Sport steering wheel
  • Sound dampening headliner and rear panel cover
  • A- and B-post covers
  • Interior rearview mirror, sun visor, and dome light
  • Windshield wiper and washer

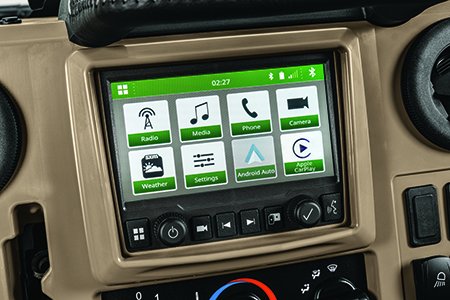

Factory-installed touchscreen infotainment system

Signature Edition’s standard 16.3-cm (6.4-in.) touchscreen infotainment system delivers seven speakers, rear-facing camera, Bluetooth® wireless connectivity, AM/FM, and SiriusXM® satellite radio. The infotainment system is designed for use during operation and while parked.

The touchscreen infotainment system is compatible with Apple CarPlay and Android Auto. CarPlay allows iPhone users to place hands-free phone calls, send messages, check the weather, and access Apple Music and Maps through the infotainment system touchscreen or with their voice through Siri. Android Auto enables Android smartphone users to place hands-free phone calls, send messages, check the weather, play music, and get driving directions. An operator can also control the apps on the infotainment system using Google Assistant voice controls.

When using CarPlay or Android Auto, the touchscreen and voice control user experiences are provided by the iPhone or Android smartphone app software. Screen layouts, icons, menu structures, and voice commands are designed to be familiar to the iPhone or Android smartphone user. To use CarPlay or Android Auto, the iPhone or Android smartphone must be connected using an USB cable. A Bluetooth® wireless connection provides basic smartphone functions using infotainment system’s software.

Background noise may limit the usability of voice controls while the vehicle is being operated. The iPhone or Android smartphone app software must also be compatible with CarPlay or Android Auto.

Seven-speaker infotainment system professionally tuned by Harman:

• Two headliner and two dash full-range speakers
• Two A-pillar tweeters and an under-seat subwoofer
• Water-resistant construction prevents damage in outdoor environments
• Powerful for listening outside the vehicle

Rear-facing camera:

• Is displayed on the infotainment screen with the push of a button
• Can be used at any time, including spreading and spraying
• Assists in positioning the vehicle to accurately place material dumped from the cargo box
• Provides visibility to the hitch ball to precisely align trailer hitches
• Is mounted to cargo box, and the box can be raised for a hitch-focused perspective

Sirius XM satellite radio:

• Provides access to hundreds of channels of music, live sports, world-class news, and entertainment
• Includes a factory-installed antenna
• Requires a separate subscription

USB ports:

• Can be used to charge phones and USB devices
• Supports connectivity
• Are located under the radio

Auxiliary port:

• Allows any audio device with a headphone jack to play music through the infotainment system
• Is located under the radio

Ultimate protection package

Signature Edition vehicles include the ultimate protection package to protect the vehicle:

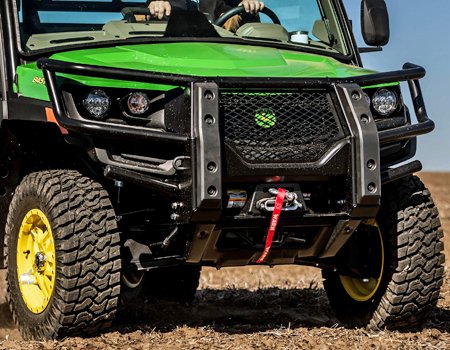

• Bumper Pro Brush Guard:
  • Protects the front grille, lights, hood, and sides
  • Has eye-catching and assertive appearance
  • Includes full-height rubber bumpers to soften contact with obstructions, including cattle gates
  • Has center screen that keeps trash from entering the radiator, which eases maintenance
  • Reaches around the side, so there is no need for brush guard extensions
  • Tilts forward for hood access
  • Is compatible with BUC11866 front fender guards
  • Is not compatible with BM26215 LED driving lights or BM26216 LED work lights
• Rear fender guards and rear bumper:
  • Protects the rear and sides of cargo box
  • Includes BUC11332 rear fender guard and BUC11331 rear bumper
• Floor mats
  • Adds a finished look while protecting the cab floor
  • Dampens operator station noise

Conquer tough terrain with confidence

You will feel confident and comfortable, even on tough terrain, with a full-size Gator™ Utility Vehicle. You will feel stable with a low center of gravity and a wide stance. Engine braking and four-wheel hydraulic disc brakes keep you in control on steep descents, even when fully loaded. The power steering on M- and R-Trim vehicles, is smooth and responsive.

Standard four-wheel drive with rear differential lock

With standard four-wheel drive and rear differential lock, both instantly available with the flip of a switch, you can get where you are going.

Dual A-arm front and rear independent suspension

The independent suspension provides a smooth ride as 203 mm (8 in.) of front suspension travel and 229 mm (9 in.) of rear suspension travel cushions bumps and glides over ruts. And clearing rocks and roots is no problem with up to 305 mm (12 inches) of ground clearance.

Tires for any terrain

Full-Size Gator Utility Vehicles are available with three tire options:

• Terra Hawk all-terrain tires
  • Tread pattern and wide footprint provide excellent traction with minimal impact on terrain
• Maxxis Bighorn 2.0 extreme terrain radial tires
  • Radial construction provides shock absorption, allowing for a smoother ride
  • Non-directional tread pattern provides predictable cornering and claws up roots and rocks
• Predator Heavy-Duty all-terrain radial tire
  • Radial construction provides shock absorption, allowing for a smoother ride
  • Flat profile increases footprint area, reducing ground pressure
  • 8-ply rating delivers up to three times the life of Bighorn tires

Built for the long haul

Full-size Gator™ XUVs are built to work hard and go the extra mile.

Heavy-duty frame

The hefty frame is designed to stand-up to all the bumps and bends of the trail, and the standard full-underbody skid plate protects key components from damage.

Constant velocity boot protection

Constant velocity joints are enclosed to keep water and dirt out. A protector shield protects the boot from trail debris.

Automotive-grade panels and optional protection packages

The hood and side panels are made of automotive-grade materials that resist scratches and dents, and the cargo box is made of tough composite material that resists dents and rust. Optional protection packages look tough and provide even more protection.

Automotive-like controls

When you sit behind the wheel of a full-size Gator™ Utility Vehicle, you will be reminded of your favorite pick-up truck. There are controls at your fingertips, an easy-to-read instrument panel, and outlets to recharge your phone. Comfort and convenience packages include cargo box power lift, dual-beam LED headlights, turn signals, even a winch.

Shift from park and into gear with a throw of a single lever. Power steering on M- and R- trim vehicles is smooth and responsive.

When the going gets tough, you can instantly engage four-wheel drive and rear differential lock with switches. Even at night, the backlit switches are easy to see. If a front wheel starts to slip, the front differential automatically locks to pull you through.

Room for you, plus two

When you hop into the seat of a full-size Gator™ Utility Vehicle, you will notice there’s seating for you, plus two.

Three-passenger seating with room to spare

The adjustable operator’s seat and tilt steering lets drivers of all sizes get comfortable, and the passenger grab handles help everyone feel secure. The low step height and generous opening between seat base and fender is even designed to accommodate bulky work boots.

Roof, windshield, rear panel, door, and heater options

Roof, windshield, rear panel, and half doors attachments keep you dry, shaded, and out of the dust. Cab doors with roll down windows and heater attachments keep you warm all winter.

Class-leading cargo box volume* configures to the needs of the job

The large cargo box on full-size Gator XUVs has a 454 kg (1000 lb) capacity so you can bring your gear, tools, and haul materials with confidence. You can also make fewer trips with 1814 kg (4000 lb) of towing capacity and a standard 51-mm (2-in.) receiver hitch.

Class-leading cargo box volume

The cargo box resists dents, scratches, and rust because it is made from a tough composite material and can haul 524-L (18.5-cu ft) of your gear and material. Five D-ring tie down points and rails can be used to secure your load.

Quickly configure the cargo box to the needs of the job

Molding the cargo box allows for built-in features that enable the box to be quickly reconfigured for the unique needs of every job. You can use standard 5-cm (2-in.) dimensional lumber to hold cargo in place or divide cargo box into separate areas. You can add a second level of storage space by leveraging the tiered storage lip. Stake pocket clamps allows for quick and toolless attachment installation and removal. On M-trim and R-trim vehicles, a 12-V power port is available to power attachments.

Your portable workbench

The tailgate includes a flat work surface, ruler, and pockets to place hardware. A v-channel and four reinforced clamping pockets work together to securely hold round objects. Bump stops provide raised edges position your square edged objects.

Since your hands are always full, the tailgate can be opened and closed with one hand. You can also lower the tailgate to carry longer items or remove it for easy cleanout.

Powerful EFI engine and drivetrain

The XUV 845 and XUV825M S4 Gator™ Utility Vehicles are powered by an electronic fuel injection (EFI) gasoline engine with liquid-cooled, dual-overhead cams. This engine is designed to provide maximum power and fuel efficiency to muscle through tough jobs.

It also has plenty of torque in low range, and fast speeds in high range. The enclosed drivetrain automatically adjusts for fast acceleration, along with powerful hauling and hill-climbing capabilities.

Store more gear

One-row full-size Gator XUVs come packed with places to store tools, gear, and beverages.

Cup holders

The dash has four cup holders, and cab vehicles have a cup holder in each door.

Dash and under-seat storage

The vehicles also feature an enclosed glove box, center tray, dash storage pocket and under-seat storage. Depending on the configuration, vehicles may have up to three additional dash bins and under-hood storage.

Color options and styling

You will get noticed with the distinctive styling of full-size Gator™ XUVs. Available in three colors, with various protection packages, and more than 100 attachments, you can create a custom look that will turn heads.
