2025 John Deere 9500

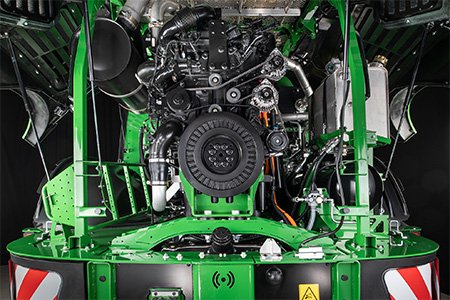

Powerful John Deere JD18X engine

The John Deere JD18X engine with 18L (1098-cu in.) displacement delivers unmatched performance and characteristics. The unique engine characteristic and efficiency brings the John Deere self-propelled forage harvesters (SPFH) into another performance league in the 700- to 800-PS (690.4- to 789-hp) power class. With the JD18X engine comes unique features and high comfort on the 9500, 9600, and 9700 SPFH models.

• Perfect engine characteristic for SPFH application
• Diesel only engine – no diesel exhaust fluid (DEF)/AdBlue® with Final Tier 4 (FT4)/ Stage V (EU) emission regulations
• HarvestMotion Plus
• Long engine oil service interval (750 hours)

The JD18X engine was awarded “Diesel of the Year 2021,” confirming the performance and the Diesel only concept. Click here for more information.

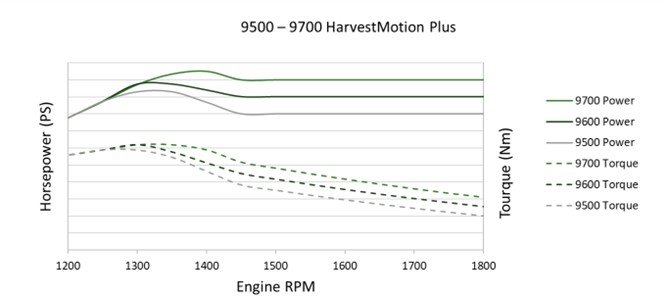

The unbeatable performance of the JD18X engine together with the HarvestMotion Plus concept achieves unique power and torque rise in the 700- to 800-PS (690.4- to 789-hp) power class.

The unique engine characteristics with constant, strong power and torque rise at around 1300 rpm provides a highly efficient forage harvester and comfortable driving in every situation.

Efficient, powerful, and reliable HarvestMotion Plus concept

A state-of-the-art engine with ideal performance characteristics and low specific fuel consumption perfectly aligns and synchronizes with a superior crop flow. This is the John Deere HarvestMotion Plus concept. The “Plus” stands for unique torque rise and more power at low engine rpm – an experience of pure performance and efficiency without any compromise. Additionally, there is no diesel exhaust fluid (DEF) required.

The HarvestMotion Plus advantage:

• 13 percent less fluid consumption (diesel plus DEF)
• 48 kW (64.4 hp) of extra power at low engine rpm to easily digest peak loads
• Simple is strong – reliable harvest capacity

Leading efficiency
With a maximum engine speed of 1800 rpm, the engine is always operated in its sweet spot. Lower rpm means lower specific fuel consumption. Less fuel consumption means less costs and, in the end, more money in your pocket. HarvestMotion enables up to 13 percent less total fluid consumption, which equals up to $125 per day of grass harvest and $141 per day of corn harvest.*

*NOTE: Based in internal benchmark data from 2020: JD18X engine with HarvestMotion Plus versus replaced model with 4 percent less diesel, no DEF (AdBlue®), and 10 hours of chopping per day.

Powerful heartbeat
Less engine rpm, more power, and a unique torque rise – this is what HarvestMotion Plus delivers. The JD18X engine has been tailored to the needs of an agricultural harvesting machine. Operators will feel its strength, and owners will profit off its harvesting capacity. The 18L (1098-cu in.) John Deere engine in the 9000 Series Self-Propelled Forage Harvester (SPFH) with the HarvestMotion Plus concept is a winning combination.

Reliability through simplicity
Reliable power delivered by modern robust engine technology ensures harvesting capacity. The JD18X engine delivers exceptional performance without needing a complex aftertreatment system. This means unique simplicity in this power class.

AdBlue is a trademark of VDA Verband der Automobilindustrie e.V. Liebherr is a trademark of Liebherr-International AG.

Improve silage quality with two kernel processing options

Overview

John Deere self-propelled forage harvesters (SPFH) set new standards in kernel processing performance. Proven in independent tests during corn harvest in 2016 and 2017, John Deere kernel processors (KP) deliver smashed kernels and highly processed plants that growers expect. With two different models, the John Deere Premium KP™ kernel processor and the John Deere XStream KP™ kernel processor, all different needs will be satisfied.

Additional details

All John Deere SPFH can be operated with or without a kernel processing unit in position. When not in use, a crop transition chute (or grass chute) swings into position with a few turns of a crank. The crop transition chute comes standard on all harvesters.

The SPFH feature the AutoLube central greasing harness; the respective central greasing equipment is available on the Premium KP kernel processor. The XStream KP kernel processor features automatic pressurized oil lubrication.

The John Deere Premium KP is available for the 9500 to 9800 models, and the John Deere XStream KP is available for all 9000 Series models. The 9900 model can only be equipped with an XStream KP.

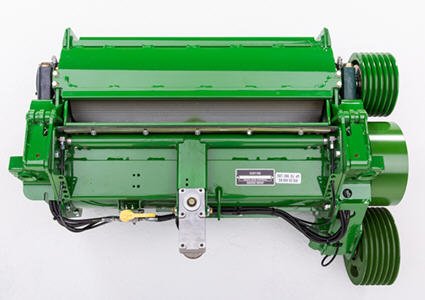

John Deere Premium KP

On the 9000 Series, the proven John Deere Premium KP can be installed on the 9500 through 9800 models. With their highly intense processing, they deliver excellent forage quality at any length of cut.

The main features of the Premium KP are:

• 240-mm (9.45-in.) roll diameter for different crops (maize and whole crop)
• 32 percent speed differential; option of 40 percent speed differential
• Standard KP housing with grease lubrication in base
• Electric KP gap adjustment from the cab as option

The following rolls are available for the Premium KP:

• Standard sawtooth (118/118 teeth)
• Dura Line™ sawtooth (118/118 teeth)
• Dura Line sawtooth (178/178 teeth)

The main features of the XStream KP are:

• 250-mm (9.8-in.) roll diameter
• 50 percent speed differential
• Heavy-duty housing with KP roll quick-exchange system
• Pressurized oil lubrication of bearings
• Bearing temperature monitoring system (option)

The following rolls are available for the XStream KP:

• Dura Line sawtooth (110/145 teeth) – available in 25.4- or 27.9-cm (10- or 11-in.) rolls
• Dura Line sawtooth or XCut (120/160 teeth) – 27.9-cm (11-in.) rolls
• Dura Line sawtooth (160/160 teeth) – 27.9-cm (11-in.) rolls
• Dura Line sawtooth advanced (145/165 teeth) – 25.4-cm (10-in.) rolls

Dura Line™ wear parts

Overview
Due to increased machine usage (chopping more tons per hour), standard high-quality steel parts need to be replaced more frequently. Since 2010, John Deere has been meeting the challenge and exceeding expectations with Dura Line wear parts.

Dura Line components  were developed by John Deere and are installed in high wear spots on the self-propelled forage harvesters (SPFH), mainly in the crop flow. The technology is normally used for heavy-duty environments such as mining and machine tooling. It is the highest material quality in the industry that is installed on an SPFH.

Benefits

• The coating is extremely wear resistant with an extraordinarily smooth surface due to the special heat treatment and a proprietary tungsten carbide composition.
• Dura Line™ provides a permanent fast-chopping process with low crop friction on the components while fuel consumption remains low.
• Tests show that when chopping in the same crop conditions and chopping the same tonnage, Dura Line parts last four times as long as, or longer than, standard parts. Time and money associated with replacing parts are significantly reduced.

Dura Line guarantee

The Dura Line guarantee provides a specified number of engine hours or time of usage (whichever comes first) for the different Dura Line liners. The Dura Line guarantee was first introduced in 2017 and is valid for all 8000 and 9000 Series SPFH models. Dura Line liners damaged from foreign material or misuse are excluded. Only parts that are completely worn are replaced.

For more information about the Dura Line guarantee, contact the local sales organization.

Dura Line packages

The John Deere Dura Line crop flow liners come in three packages. Depending on the individual harvesting requirements, there is a perfect package for every need.

• Basic: Perfect solution for machines mainly harvesting corn
• Premium: Ideal for abrasive conditions (particularly grass)
• Ultimate: Perfect choice for toughest conditions, providing full crop flow coverage

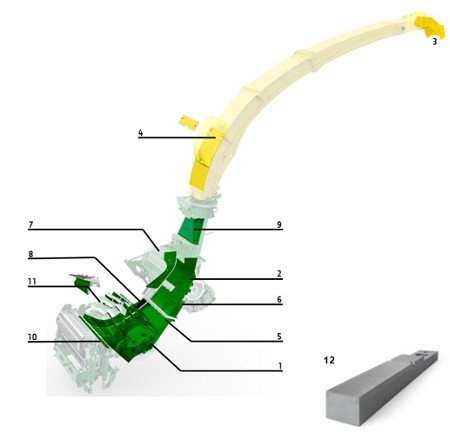

Dura Line wear parts

High forage quality with HarvestLab™ 3000 and AutoLoc™ system

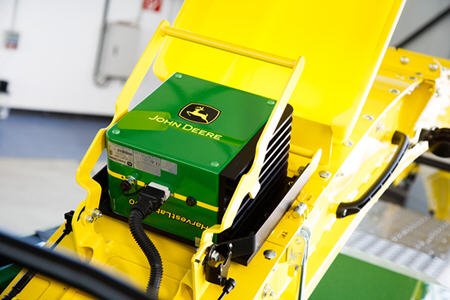

The HarvestLab 3000 sensor mounts to the top of the discharge spout and takes accurate dry matter and ingredient readings (more than 4000 measurements per second) of the crop through the sapphire glass lens as crop passes through the spout. This is the same technology forage labs use to measure dry matter. HarvestLab 3000 with John Deere Constituent Sensing measures dry matter and constituents like sugar, starch, acid detergent fiber (ADF), neutral detergent fiber (NDF), crude fiber, crude ash, crude protein, crude fat, Metabolic Energy and ELOS depending on the crop. In addition, the HarvestLab 3000 sensor can also be used as a stationary unit.

Crop type and constituent sensing

When HarvestLab 3000 is used in conjunction with Harvest Monitor™ system, a wealth of important information becomes available to the operator, including productivity in acres per hour, throughput in tons per hour, total area harvested, total crop mass harvested, yields, and dry matter. To measure and document the constituents, a G5Plus Universal Display is required. All data documented on the G5Plus Universal Display is shown in John Deere Operations Center.

When the HarvestLab 3000 is used in conjunction with an 8000 or 9000 Series Self-Propelled Forage Harvester (SPFH) and a GreenStar™ display, AutoLoc functionality is automatically present. AutoLoc automatically varies the length of cut according to the desired crop-dry matter correlation settings based on the dry matter readings from the HarvestLab 3000 sensor. With the AutoLoc adjustment, bunk density is improved and a high forage quality is reached.

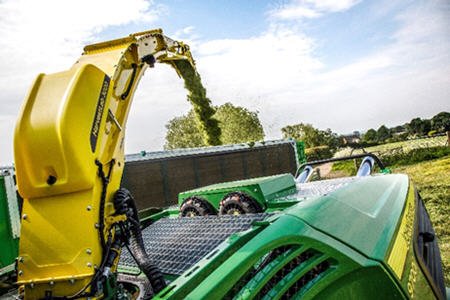

AutoLoc - Automatic length of cut

1. HarvestLab 3000 — moisture and ingredients on the go
2. Manual control (operator)
3. AutoLoc — automatic control
4. IVLOC™ transmission — length of control changes on the go

AutoLoc, a feature exclusive to John Deere and unique to the market, brings added value to the HarvestLab sensor and John Deere SPFH. AutoLoc works in conjunction with the HarvestLab 3000 sensor and IVLOC transmission to automatically adjust the length of cut (LOC) based on crop moisture levels to improve bunk density and reduce long particles in dry corn. Nutritionists, herdsmen, and SPFH operators will all benefit from this innovation.

John Deere is leading the industry in providing real-time information that matters most to forage production. Quality forage comes from properly packed silage, which is directly related to the moisture content and LOC of the crop.

LOC changes are made automatically in the field based on moisture readings and predetermined settings determined by operator requirements. No in-field calibration is required to load the LOC requirements; the operator simply uses the GreenStar™ display to program the desired LOC settings at different moisture levels.

When moisture levels of crop in the field change, the IVLOC drive automatically responds to either increase or decrease the feedroll speed, which in turn changes the LOC. If moisture levels of the crop are outside of the desired range, the IVLOC transmission adjusts and limits the LOC based on the maximum and minimum LOC settings as determined by the operator.

Total Care

Total Care overview

Total Care is an extended service program that allows customers to secure annual maintenance costs and be in a better position to prevent downtime during harvest. Total Care is available to customers purchasing a new 8000 or 9000 Series Self Propelled Forage Harvester. There are four plan offerings, Total Care Select, Total Care Ultimate, Total Care Select – Full Service, and Total Care Ultimate – Full Service. The Full Service plans indicate labor IS included while our original Total Care Select and Ultimate plans do not include labor. All Total Care plans are designed to help you maintain the original performance and uptime of your new machine.

Benefits

• Maximize machine performance and reliability through regular inspections and regularly scheduled maintenance
• Manage unforeseen financial risk and control operating expenses
• Replace worn parts as needed to ensure the customer does not experience downtime during the next use season
• In-season wear parts replacement (if needed) on both the traction unit and front-end equipment

Requirements and term lengths

Plan details

Not included:

• In-season maintenance

• Technician field travel and machine transport
• Insurance covered events
• Abuse and/or neglect
